Building a Resilient Task Distribution System with Manager-Worker Pattern

In the LucasLatessa/SDyPP-G3 project, we recently tackled the challenge of efficiently distributing and processing a continuous stream of tasks. This led us to implement a robust Manager-Worker pattern, leveraging a message broker to ensure reliability and scalability.

The Challenge of Distributed Tasks

Handling tasks that require asynchronous processing can be complex. Directly invoking functions or running processes in a tightly coupled manner often leads to bottlenecks, reduced fault tolerance, and difficulties in scaling. If a task fails, or if the processing service becomes overwhelmed, the entire system can be impacted. Our goal was to create a system where tasks could be reliably queued, processed independently, and scaled horizontally without direct dependencies between task producers and consumers.

Designing the Pull-Manager and Worker Architecture

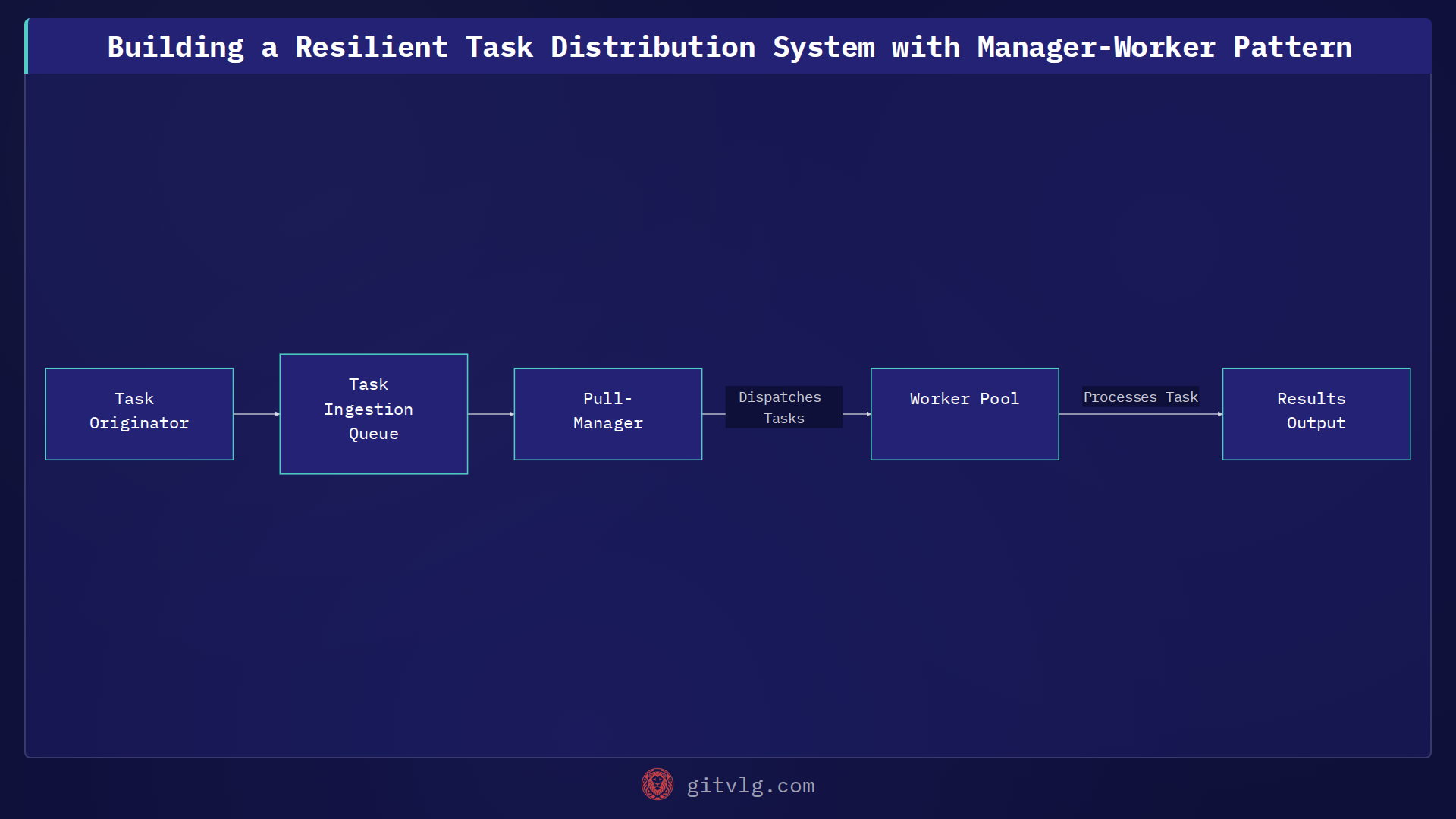

The Manager-Worker pattern, specifically a 'Pull-Manager' approach, provided an elegant solution. Here, the Manager acts as a task dispatcher, enqueueing work into a central message queue. Workers, on the other hand, continuously pull tasks from this queue, process them, and acknowledge completion. This decoupling allows both components to operate independently, offering significant advantages in terms of resilience and scalability.

We chose RabbitMQ as our message broker due to its robust features, including message persistence and acknowledgment mechanisms, which are crucial for reliable task delivery.

Below are simplified Python examples illustrating the Manager (producer) and Worker (consumer) components:

Manager (Producer) Example

import pika
import json
import time

# Establish connection to RabbitMQ
connection = pika.BlockingConnection(pika.ConnectionParameters('localhost'))
channel = connection.channel()

# Declare a durable queue for tasks
channel.queue_declare(queue='task_queue', durable=True)

def publish_task(task_id, payload):
    message = {'task_id': task_id, 'data': payload}
    channel.basic_publish(
        exchange='',
        routing_key='task_queue',
        body=json.dumps(message),
        properties=pika.BasicProperties(
            delivery_mode=2,  # Make message persistent
        )
    )
    print(f" [x] Sent task {task_id}")

# Example: Publish a few tasks
for i in range(5):
    publish_task(i, f"process_data_{i}")
    time.sleep(1)

connection.close()

The Manager publishes tasks, ensuring they are marked as persistent so they survive a broker restart. If a Worker isn't immediately available, tasks simply wait in the queue.

Worker (Consumer) Example

import pika
import time
import json

# Establish connection to RabbitMQ
connection = pika.BlockingConnection(pika.ConnectionParameters('localhost'))
channel = connection.channel()

# Declare the same durable queue
channel.queue_declare(queue='task_queue', durable=True)

def callback(ch, method, properties, body):
    task = json.loads(body)
    print(f" [x] Received task {task['task_id']}: {task['data']}")
    # Simulate work
    time.sleep(task['task_id'] % 3 + 1)
    print(f" [x] Done with task {task['task_id']}")
    ch.basic_ack(delivery_tag=method.delivery_tag) # Acknowledge task completion

# Distribute tasks fairly among workers
channel.basic_qos(prefetch_count=1)

# Start consuming messages
channel.basic_consume(queue='task_queue', on_message_callback=callback)

print(' [*] Waiting for messages. To exit press CTRL+C')
channel.start_consuming()

Workers consume messages, process them, and crucially, send an ack (acknowledgment) back to RabbitMQ. If a Worker crashes before acknowledging, RabbitMQ will redeliver the message to another available Worker, preventing data loss.

Benefits of This Decoupled Approach

This architecture offers several key advantages:

• Scalability: You can easily add more Workers to increase processing throughput as demand grows, without modifying the Manager.
• Reliability: Tasks are persisted in the queue, ensuring they are processed even if Workers or the Manager temporarily go offline.
• Fault Tolerance: If a Worker fails mid-process, unacknowledged tasks are automatically requeued for other Workers.
• Decoupling: The Manager and Workers are completely independent, simplifying development, deployment, and maintenance.
• Resource Utilization: Tasks can be processed in parallel, making efficient use of available computational resources.

Key Takeaways for Distributed Systems

Implementing a Manager-Worker pattern with a robust message broker like RabbitMQ is a powerful strategy for building scalable and resilient distributed systems. It transforms potential bottlenecks into efficient, parallel processing pipelines. This approach is invaluable for any application requiring asynchronous task execution, background job processing, or reliable data integration between disparate services.
